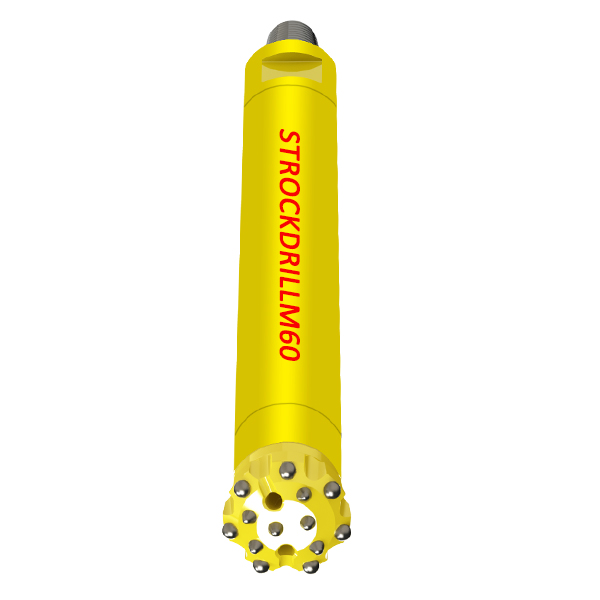

We manufacture DTH Hammers in different sizes ranging from 3 to 12. These hammers

are made corresponding to Drilling Bits to carry out prevalent objectives. These hammers

are used in various down the hole operations like bench Drilling. These are valve less hammers

with optimized air cycle frequency. These are heavy duty hammers that well at greater depths

demanding less air usage, delivering minimum performance loss.

Mostly have M30 DTH Hammer, M40 DTH Hammer, M50 DTH Hammer, M60 DTH Hammer, M80 DTH Hammer

 Model

OD(mm)

Length(mm)

Hole   Range

Work   Pressure

Air   Consumption M3/min

10bar

18bar

24bar

M30

80

909

90-105

8-30

3.8

8

11.5

M40

99

955

105-130

8-30

4.5

9

14

M50

126

1079

133-152

8-30

6.5

12.5

17

M60

144

1108

152-254

8-30

7.5

16

24

M80

182

1298

194-305

8-30

10

24

33
